TRAILER NO RAMP 16′ 10,000LB PAYLOAD

Manufacturer: NO RAMP
Model: U-14
4 Hour: $75
Daily: $95
Category:

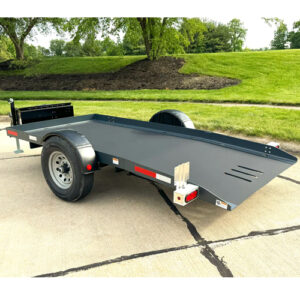

No Ramp U-14 Trailer
No Ramp U-14 Trailer
FEATURES
  • Eliminate injuries caused by heavy ramps such as pulled back muscles, smashed feet, and severed fingers that lead to worker comp claims or law suits. Save time & money as loading/unloading can be done with-or-without tow vehicle being attached. Avoid equipment damage as low approach angle protects equipment from damage caused by falling off ramps during loading and unloading.
  • Ability to load any low clearance equipment quickly and safely due to low approach angle.
  • Applications: Skid Steers, Scissor Lifts, Fork Lifts, Construction, Farming, Industrial Cleaning Equipment, plus so much more.
  • For assured safety of load, in case of accidental hydraulic line damage.
  • Reduces time with added safety. Break lug nuts loose, apply blocks under each rear corner of trailer, and lower unit to raise tires off the ground.
* Prices are subject to change. Tax and other fees not shown in above price estimate.
  • Maximum Payload: 10,000 lbs.
  • Axle Rating: 2 x 7,000 lbs.
  • Trailer Weight: 3,600
  • Overall Width: 102”
  • Overall Length: 19’6”
  • Loading Surface Area: 80” x 14’
  • Deck Surface: Treated Pine
  • Lifting Device: Hydraulic w/Elec. Assist
  • Suspension: Twin Axle Torsion
  • Electric Brakes: Standard
  • Wheel Size: 16”
  • Hitch Size: 2 - 5/16”
  • Systems & Storage Box: Standard
  • Lighting: LED
  • Welded D-Rings: 6
  • Banjo Hole Cut Outs: (4) 2/Side-Frt & Rear
  • Battery: Group 31
  • Stake Bed Pockets: Standard
  • Safety Lock: Standard
PDF Version No Ramp U-14 Specifications
PDF Version No Ramp Operation / Maintenance Check List
PDF Version No Ramp Parts Manual
