MQ 8H W GENERATOR 3600

Manufacturer: MULTIQUP
Model: GA-3.6HZ
4 Hour: $58
Daily: $58
Product Enquiry

Description

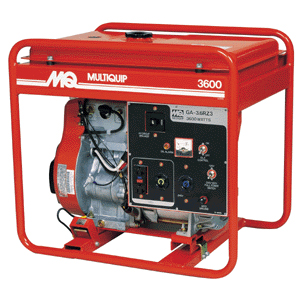

Multiquip GA-3.6HZ Honda Engine Portable Generator

When you need a mid-size generator to provide power for everything from heaters to saws, look to these workhorses. Multiquip generators will spend more time on the job and less time on your mechanic’s workbench. To power everything from heaters to saws, Multiquip’s 3.6kW generators are a logical selection. The GA-3.6HZ has an automatic idle that reduces fuel consumption during periods of no load. The generator includes steel fuel tanks with a sight gauge, a full-power switch and a voltmeter that allows the operator to quickly tell whether the unit is producing the correct voltage. This prevents overheating of expensive tools and equipment.

PERFORMANCE DATA

  • Sound Level dB(A) – full load 23 feet: 73
  • Voltage/Hz/Phase: 120/240V, 60Hz, Single
  • Maximum Watts: 3,600
  • Continuous Watts: 3,200
  • Maximum Amps @ 120V: 30
  • Maximum Amps @ 240V: 15
  • Continuous Amps @ 120V: 26.6
  • Continuous Amps @ 240V: 13.3
  • Voltmeter: Standard
  • Full Power Switch: Standard
  • Main Circuit Breaker: 13.5 (2-pole)
  • AC Receptacles:
    120V Duplex; 120V Twist-Lock; 240V-Twist Lock
  • Alternator Design: Brushless
  • Rated Speed: 3,600

POWER SOURCE

  • Engine Power – HP (kw): 8.0 (6.0)
  • Low Oil Shutdown: Standard
  • Fuel Tank Capacity – gal (liters): 5 (18.9)
  • Engine Model: Honda GX-240
  • Running Time Hours/Tank: 7.5
  • Automatic Idle Control: Standard
  • Fuel Gauge: Standard
  • Starting System: Recoil

DIMENSIONS

  • Overall Height – in. (cm): 18.75 (47)
  • Overall Length – in. (cm): 25 (63)
  • Overall Width – in. (cm): 19.75 (50)
  • Operating Weight lbs. (kg): 165 (75)
Multiquip GA-36HZ Generator

Multiquip GA-36HZ Generator

PDF Version Multiquip GA-3.6HZ Parts Manual
* Prices are subject to change. Tax and other fees not shown in above price estimate.
