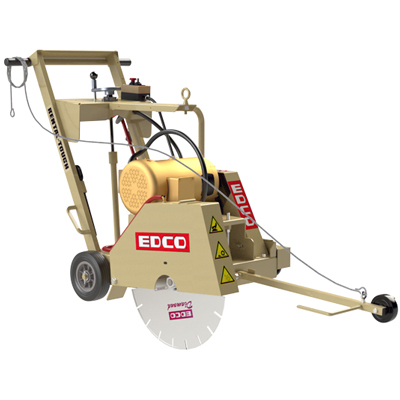

EDCO 20″ WALK-BEHIND STREET SAW

Manufacturer: EDCO
Model: DS20G
4 Hour: $135
Daily: $205
Walk-Behind Flat Saws solve short-run cutting applications including utility installation, road repair, and trenching. This 20” Saw is EDCO’s premium model. Features include protected throttle cable, easy turn depth handwheel, strong lifting points, EDCO’s anti-vibration engine mount that helps the blade cut straight, and a cutting depth of 7 ¾”.

FEATURES
  • 20" Blade Capacity
  • New & Improved throttle cable
  • Easy turn crank, for lowering and raising blades in and out of cut
  • Heavy-Duty Anti-Vibration engine mount
  • Screw boot belt tensioner prevents frame damage
  • 7-gauge steel blade guard with welded protective segment flap
  • Heavy-Duty lifting bail for easy loading and unloading
  • 13 HP gasoline engine or 7.5 HP electric options
  • Heavy-Duty 7-gauge steel laser cut frame
  • Large screw-type depth control
  • Wide-T handles with rubber grips
  • Solid-Steel lifting handles
  • High quality molded rubber wheels
* Prices are subject to change. Tax and other fees not shown in above price estimate.
  • Part#: 30100
  • Power: Gasoline
  • Horse Power: 13 HP
  • RPMs: 3,000
  • Length: 50"
  • Width: 24.5"
  • Height: 39"
  • Weight: 265 lbs
  • Max Cut - Depth: 7.75"
  • Belts: Cgd "V" Belt
PDF Version EDCO DS20G Specifications
PDF Version EDCO DS20G Operators Manual
PDF Version EDCO DS20G Parts Manual
