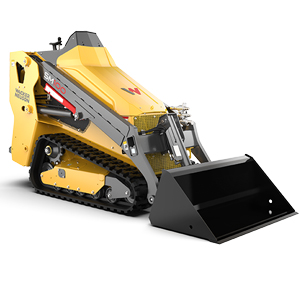

WACKER UTILITY TRACK LOADER SM100

Manufacturer: Wacker Neuson
Model: SM100
4 Hour: $ 295
Daily: $ 295

DESCRIPTION

The versatile, stand-on SM100 utility track loader is an excellent addition to any rental or contractor fleet and is the perfect fit for landscaping projects, light site work, grading, auguring, general material handling and much more!

FEATURES
  • Powered by a 24.7 hp Yanmar turbo charged diesel.
  • Machine offers a 1,000 pound operating capacity at 35% with a tipping load of 2,847 pounds.
  • Durable undercarriage with triple flanged roller design reduces maintenance costs and total cost of ownership.
  • Overall narrow width allows access to urban areas and smaller yards.
  • Fine-tuned, forward angled joysticks reduce operator fatigue.
  • The standard 9-inch wide tracks providelow ground pressure, reducing turfdisturbance and the overall machine widthof 35.5 inches fi ts through doorways,gates and other tight spaces.
  • Common industry attachment interface foruse with compatible attachments.Optimized radial lift path provides verticallift performance for dumping in high sidedtrucks or reaching into truck beds.
  • Step-up and go concept makes operationeasy. Spring-suspended platform offerscomfort and stability and includes anoperator presence system that preventsaccidental machine movement when theoperator steps off the platform.
* Prices are subject to change. Tax and other fees not shown in above price estimate.

SPECIFICATIONS

  • Rated Operating Capacity @35%: 1,000 lb
  • Tipping load: 2,857 lb
  • Operating weight: 3,300 lb
  • Travel speed: 5.2 mph
  • Operating pressure - ground: 4.1 psi
  • Flow rate - auxiliary: 13 US gpm
  • Pressure - auxiliary: 3,045 psi
  • Engine / Motor: Yanmar 3TNV80FT
  • Engine / Motor type: liquid-cooled, 4-cycle, 3-cylinder, turbocharged diesel engine
  • Power: 24.7 hp
  • Torque - max. @1800 rpm: 62.6 lbf
  • Idling speed low: 1,200 rpm
  • Idling speed high: 2,600 rpm
  • Fuel tank capacity: 14.1 US gal

MANUALS

PDF Version Wacker SM100 Specifications
