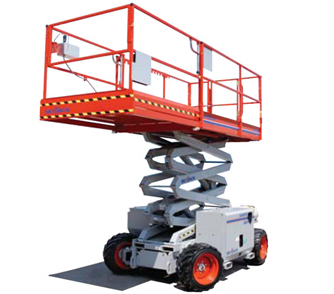

Skyjack SJ6832RT Scissor Lift

Compact Series – Rough Terrain Scissor Lift Model SJ6832 RT

Skyjack Rough Terrain Scissor Lift Model SJ6832 RT

Skyjack Rough Terrain Scissor Lift Model SJ6832 RT

Skyjack’s Compact Series Rough Terrain Scissor Lifts offer the same industry leading rugged, robust, and reliable scissor lifts that have made Skyjack famous. Electric rough terrain scissor lifts have the ability for the unit to operate indoors and outdoors mean this rough terrain scissor lift can be the first machine on site and the last off…increasing your utilization.

The SJ6832RT comes equipped with an exclusive cross over symmetrical 4WD system for superior traction. Featuring up to 50% gradeability, these machines can operate on any job site terrain. Standard features also include an easy to use 5’ roll out extension deck, which can be secured in multiple positions for increased platform space and improved reach capabilities.

This Compact model is drivable at full height with the roll out deck fully extended. An low stowed height is ideal for loading and unloading tools and materials. Consistent with Skyjack’s robust and reliable design features, the Compact Series Rough Terrain Scissor Lifts utilize Skyjack’s standard color coded and numbered wiring system with analog based controls.

Learn more about the Skyjack model SJ6832 RT standard features below. For more information about its rental prices go to our Skyjack Scissor Lift SJ6832 RT product page or call us at (813)971-9990.


  • Crossover symmetrical 4WD
  • Drivable at full height with roll out deck fully extended
  • 5’ (1.52 m) Roll out extension deck
  • Dual fuel (gas/propane) or diesel engine
  • 90° swing out engine tray
  • Multiple wet disc spring applied hydraulic release brakes
  • 110V AC outlet on platform with GFI
  • Up to 50% Gradeability
  • Foam-filled low profile grip lug tires
  • Tilt alarm with drive & lift cut-out
  • Lanyard attachment points
  • All motion audible alarm
  • Operator horn
  • Hinged railing system
  • Forklift pockets and tie down/lift lugs
  • Full height spring hinged gate at rear of unit
  • Relay based control system
  • Color coded and numbered wiring system
  • Telematics ready


  • Work Height 38’ (11.58 m)
  • Raised Platform Height 32’ (9.75 m)
  • Lowered Platform Height 54” (1.37 m)
  • Overall Width 69.5” (1.76 m)
  • Overall Length 107” (2.72 m)
  • Stowed Height (Rails Up) 99” (2.51 m)
  • Stowed Height (Rails Down) 69” (1.75 m)
  • Platform Width (Inside Dimension) 56” (1.42 m)
  • Platform Length (Inside Dimension) 96” (2.44 m)
  • Extension Deck 5’ (1.52 m)
  • Ground Clearance 8” (0.20 m)
  • Wheelbase 80.5” (2.04 m)
  • Weight 7,660 lbs (3,475 kg)
  • Gradeability 40%
  • Turning Radius (Inside) 60” (1.52 m)
  • Turning Radius (Outside) 156” (3.96 m)
  • Gradeability 45%
  • Turning Radius (Inside)98” (2.49 m)
  • Turning Radius (Outside)178” (4.52 m)
  • Lift Time (With Rated Load) 39 sec
  • Lower Time (With Rated Load) 36 sec
  • Drive Speed (Stowed) 3.8 mph (6.1 km/h)
  • Drive Speed (Raised) 0.4 mph (0.6 km/h)
  • Maximum Drive Height: Full Height
  • Distributed Capacity (Main Platform) 700 lbs (318 kg)
  • Distributed Capacity (Extension Deck) 300 lbs (136 kg)
  • Local Floor Load (With Rated Load) 181 psi (1248 kPa)
  • Overall Floor Load (With Rated Load) 297 psf (14 kPa)
  • Maximum # of Persons: 4
  • Tire Type: Foam Filled
  • Tire Size: 26 x 12
