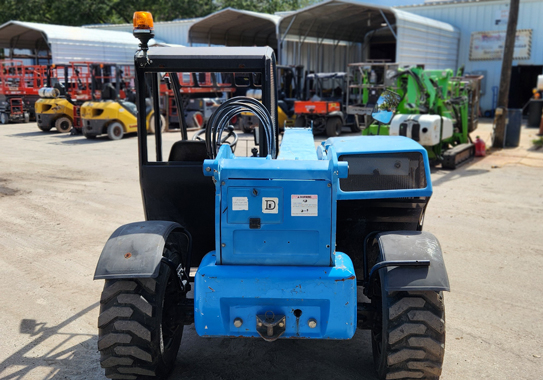

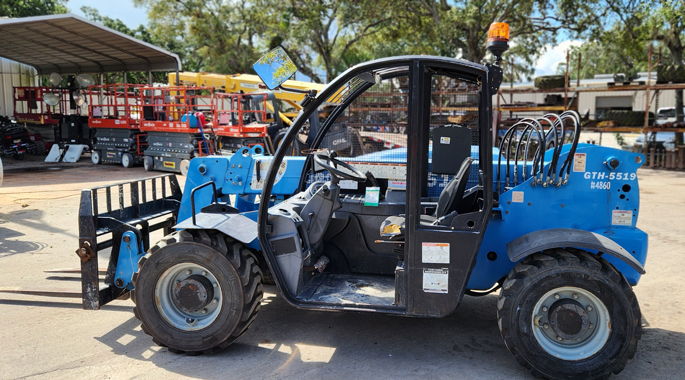

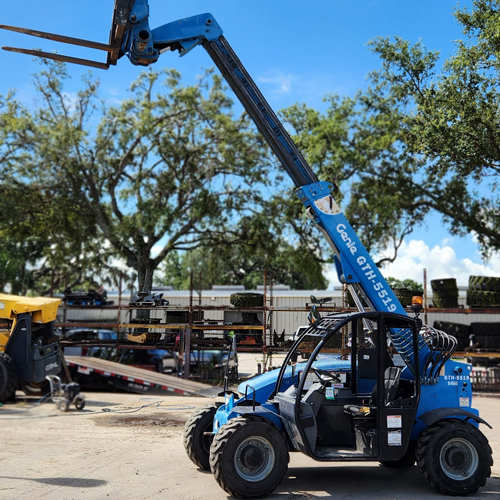

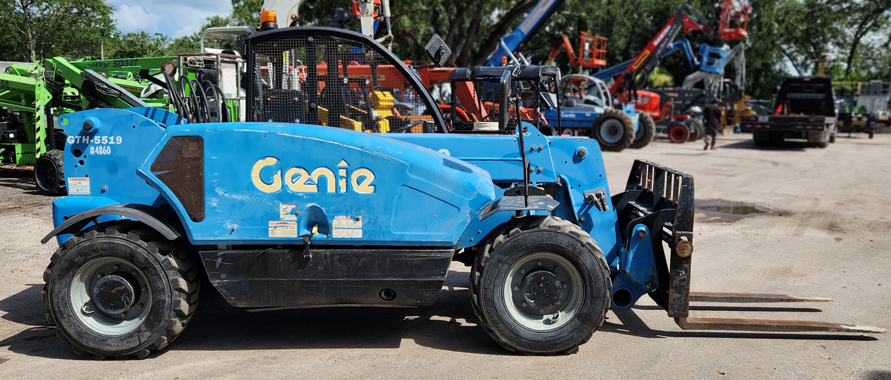

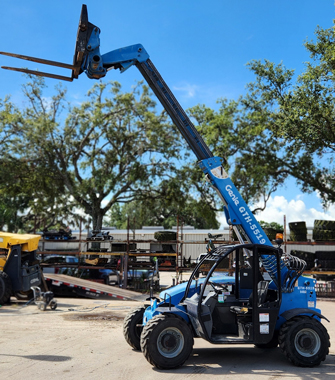

2015 Genie 5519 5000 LBS 19' Reach Forklift

GENIE GTH-5519 TELEHANDLER UNIT #4860

$37,500.00

PRODUCT ENQUIRY
Category:
2015 Genie 5519 5000 LBS 19' Reach Forklift Unit #4860
Equipment ID: 56614860 | Serial Number: GTH5516B-4370 | Hours: 2747.200

Easy to maneuver and convenient to service, with a variety of rugged attachments, Genie compact telehandlers meet the needs of most construction, masonry, landscape and farming applications.

FEATURES
  • Comfortable, spacious cab with tilt steering and ergonomic controls
  • Easy-to-use, multifunction joystick control for precise positioning
  • ROPS/FOPS canopy (ISO compliant), retractable seat belt and illuminated gauge and switch panels
  • Full-time planetary four-wheel drive and four-wheel steer
  • Proportional, reversible, continuous auxiliary hydraulic flow
  • Variable-speed hydrostatic drive
  • Power-assisted steering
  • Manual Genie Quick-Attach™ system for attachments
  • Two diesel engine options available
  • Maximum Lift Height: 19 Ft 5.79 M
  • Maximum Forward Reach: 11 Ft 3.35 M
  • Reach At Maximum Height: 2 Ft 0.61 M
  • Height, Stowed: 6 Ft 4 In 1.93 M
  • Length, Stowed (Without Forks): 12 Ft 2 In 3.70 M
  • Width: 5 Ft 11 In 1.80 M
  • Wheelbase: 7 Ft 9 In 2.36 M
  • Ground Clearance, Center :1 Ft 1 In 0.33 M
  • Ground Clearance, Axle: 10 In 0.25 M
  • Fork Cross Section: 6 X 4 In 40 X 100 Mm
  • Weight: 10,360lbs (4,700kg)
  • Power Source: Deutz D 2011 4 cylinder diesel 68 hp (50.0 kW)
  • Electrical System: 12Volts, 95amp Battery 720 CCA at 0°F (-18°C)
  • Hydraulic Tank Capacity: 16.4gal (62L)
  • Hydraulic System Capacity (w/tank): 25gal (95L)
  • Fuel Tank Capacity: 15.9gal (60L)
  • Maximum lift capacity: 5,500 lbs 2,500 kg
  • Lift capacity at maximum height: 4,400 lbs 1,995 kg
  • Lift capacity at maximum reach: 1,900 lbs 862 kg
  • Drive speed: 16 mph 25.8 km/h
  • Draw bar pull: 9,200 lbs 4,173 kg
  • Break out force: 8,100 lbs 3,674 kg
  • Turning radius, outside (4WS): 10 ft 7in 3.23 m
  • Auxiliary hydraulic flow:5 gpm 70 lpm
  • Auxiliary hydraulic pressure: 3,918 psi 270 bar
  • Tires, standard size: 12 x 16.5 in, 10 ply
PDF Version GENIE GTH 5519 Specifications
PDF Version GENIE GTH 5519 Parts Manual
PDF Version GENIE GTH 5519 Operators Manual
PDF Version GENIE GTH 5519 Service Manual
