NIFTYLIFT TM64 ACCESS PLATFORM

$0.00

SKU: N/A Category:
Nifty TM64 Towbehind Boomlift

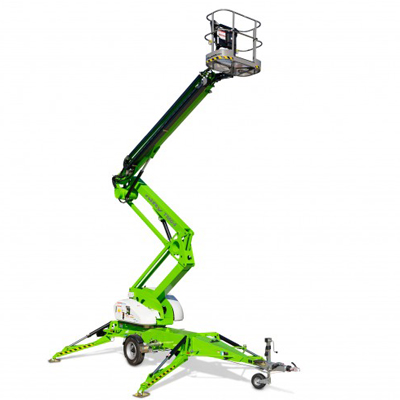

Niftylift TM64 Towable Cherry Picker
The Nifty TM64 towable cherry picker has one of the largest unrestricted working envelopes in its class. The TM64's special boom design makes it ideal for working near walls or buildings. A single control allows its platform to move vertically while remaining parallel to the job, saving time and improving efficiency. Platform rotation provides the TM64 greater maneuverability in the air and its fully proportional controls give the user precise control when positioning the platform, even on hard to reach jobs. Hydraulic outriggers make it quick and easy to set up and its traction drive system, operated from the platform, allows the TM64 to be positioned on-site with minimal effort.

FEATURES
  • Platform Rotation - Better platform positioning.
  • Unrestricted Outreach - 225kg capacity at max outreach.
  • Fully Proportional Hydraulic Controls - Simple, reliable & easy to maintain.
  • Hydraulic Outriggers - For quick and easy setup.
  • Bi-Energy Available - Optimizing utilization.
  • Traction Drive - Driven from the platform for easy maneuverability on site.
  • Machine Length: 22ft 10in
  • Working Width: 14ft 1in
  • Min Weight: 7,700lbs
  • Machine Width: 5ft 11in
  • Safe Working Load: 500lbs
  • Outrigger Type: Hydraulic
  • Platform height: 62ft 6in
  • Working outreach: 39ft 6in
  • Working height: 69ft
  • Machine height: 7ft 5in
  • Basket Rotation: 100%
  • Basket Width: 4ft 7in
  • Basket Depth: 2ft 4 in
  • Maximum Slope: 17% / 9.5°
  • Outrigger Type: Hydraulic
  • Traction Drive: Standard
  • Power Options: Diesel Only | Bi-Energy (Engine & Battery)
PDF Version Nifty TM64 Specifications

Additional information

MODEL:

TM64D
