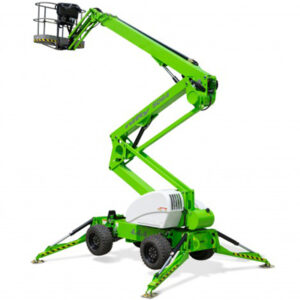

The SP45 4x4 offers one of the most impressive working envelopes in its class. Its compact base allows it to maneuver easily in enclosed spaces and its extremely low overall weight helps to minimize transportation costs. The SP45 4x4's 5ft 11in wide ToughCage offers more space for materials and tools and a 150° jib-boom with 180° cage rotation increases accuracy when positioning the cage. The tough, impact-resistant composite base and larger cross-section steel rails of the ToughCage give strength and durability, while the multi-award-winning SiOPS® provides additional user protection.

The SP45 4x4 is available with two power options, Diesel-only or second-generation Hybrid power:

Diesel power incorporates a versatile and efficient Tier 4 Final compliant engine to deliver maximum traction and gradeability, making it ideal for rough or uneven ground.
Hybrid power incorporates a smaller, power-optimized Tier 4 Final compliant engine supported by the machine's electric motor for when extra power is needed. This maintains power and performance while reducing fuel consumption for maximum efficiency. The Innovative 'Diesel Re-Gen' feature also recharges the batteries, giving a 'fast-charge' whenever the machine is idle and the engine running. In addition, an electric-only mode allows zero-emission operation, making it ideal for indoor use, or for quiet, clean operation.

Both power options include Niftylift's advanced exhaust purification system, which greatly reduces Carbon Monoxide, Hydrocarbon and particulate emissions making either an environmentally conscious choice.

All SP45 4x4s manufactured since January 1st, 2020 are also fitted with Niftylink as standard. Niftylink is a powerful telematics tool that provides data insights on your Niftylift’s health, activity and location. These insights provide a better understanding of machine usage, performance and life-cycle, as well as real-time error-code reporting. By maximizing machine ‘up-time’ and reducing lifetime running costs, Niftylink offers significant improvements in efficiency and profitability, helping you to get more from your Niftylift.

FEATURES

Second-Generation Hybrid Power: Smart, efficient, environmentally conscious power
Tier 4 Final Compliant Engine: Lowered emissions for greener performance
GVW Only 9,920lbs: Lowest weight in its class
ToughCage with SiOPS: Multi-award-winning user protection
180º Platform Rotation & Jib-Boom: Improved access to applications
45% Gradeability: 4WD for rough terrain
Superb Maneuverability: 12ft 2in outside turning radius
Maintenance-Free Batteries: Reducing maintenance downtime
Full Battery Monitoring & Protection: Increasing battery life and lowering costs
Swing-Out Engine Tray: Quick & easy to service

DIMENSIONS	SP45 4X4	SP45N	SP45E
Working Height	51ft 6in	51ft	51ft 6in
Working Outreach	31ft	32ft	31ft
Platform Height	45ft	44ft	45ft
Machine Width	6ft 7in	4ft 11in	6ft 7in
Machine Height	6ft 11in	6ft 6in	6ft 11in
Machine Length	20ft 10in	21ft	20ft 10in
Transport Length	15ft 9in	16ft 2in	15ft 9in
Travel Speed	3.7mph	2.2mph	3.7mph
Gradeability	45% / 24°	25% / 14°	35% / 19°
Turning Radius	12ft 2in	11ft 6in	12ft 2in
Minimum Weight	10010(D) / 10800(H)lbs	15980lbs	10320lbs
Safe Working Load	500lbs	500lbs	500lbs
Jib Boom Arc	150°	150°	150°
Basket Rotation	180°	180°	180°
Basket Width	5ft 11in	4ft 11in	5ft 11in
Basket Depth	2ft 9in	2ft 8in	2ft 9in
Power Options	Diesel only (Kubota 1105 - 25Hp/18.5kW) \| Hybrid (Battery & Diesel Kubota 722 - 18Hp/14kW)	Battery only Hybrid (Battery & Diesel)	All-Electric
