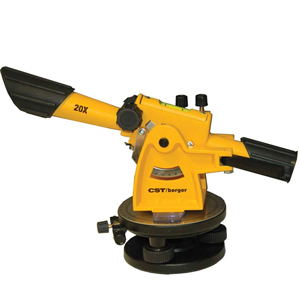

TRANSIT LEVEL 200B

For builders that require rough angle turning and fine tuning adjustments. These instruments have clamps and tangents that bring your instrument quickly on target. 15 minute horizontal circle and 1 degree vertical arc on Model 200 allow the builder to set rough angles. Unit uses 5/8 x 11 thread.

FEATURES

• Non-strip focus knob prevents breakage and lens damage
• Built-in sunshade reduces glare
• Large achromatic coated objective lens for a sharp image
• Rubber eyepiece cap protects eyeglasses
• Durable brass leveling screws
• Dust protected eyepiece with fixed cross hairs for accuracy
• High precision glass level vials
• 4-1/2 foot (1.4m) short focus for maximum usable range
• Sliding lock levers to lock telescope (on Transit/Levels)
• One piece aircraft aluminum telescope
• Electrostatically powder coated safety yellow paint
• One Year Warranty
• Working Range: 200 feet (61M)
• Accuracy: 1/4-in at 100 feet
• This unit does have Stadia
