LULL 644E-42 TELEHANDLER

PERFORMANCE

• Rated Capacity: 6,000 lb (2,722 kg)

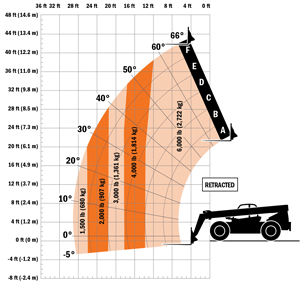

• Maximum Lift Height: 42 ft (12.8 m)
• Frame Leveling: 12 degrees
• Lift Speed (boom retracted):
  Up: 12.5 sec
  Down: 11.5 sec
• Boom Speed (no load):
  Extend: 12.5 sec
  Retracted: 13.5 sec
• Travel Speed Forward: 20 mph (32 kmph) max.
• Drawbar Pull (loaded): 18,600 lb (8,437 kg)
• Operating Weight:
  With 50 in. Carriage and Forks
  24,467 lb (11,098 kg)
• Forward Reach: 35 ft 6 in. (10.8 m)
• Horizontal Load Placement: 80 in. (2.0 m)

SPECIFICATIONS

• Make and Model: Cummins B4.5T Turbo
• Fuel: Diesel
• Cycles: 4
• No. of Cylinders: 4
• Rated Speed: 2,500 rpm
• Max. Gross BHP: 99 hp (74 kW)
• Fuel Tank: 46 gal (174 L)
• Displacement: 276 cu in (4.5 L)
• Voltage: 12V
• Alternator: 65 amp
• Battery: 850 cold cranking amps at 0°F
