Description

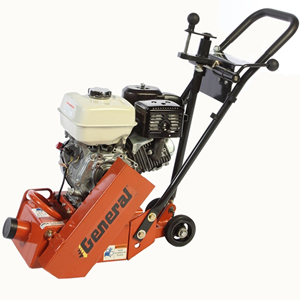

The SP8/G Series II surface planer is suitable for a range of applications, including milling misaligned sidewalks and joints, removing thermo and cold plastic markings and prepping floors for new coatings.
- Can be equipped with various 5-hp industrial-quality gasoline engines
- Heavy-duty unitized, welded steel plate frame
- Maximum cutting depth of 5/8 in. with a cutting width of 8 in. and a 3 1/4-in. cutting proximity to a vertical wall
- Screw-type, positive-locking depth selector
- Includes a water-mist dust control fitting and 3-in. vacuum connection for further dust control
FRAME
- Structure: Unitized, welded steel plate
- Bearings:
High capacity, externally greased Zerk type fittings - Driveshaft Connection:
13/16 inch (21 mm) full length hexagon - Cutting Depth Adjustment:
Screw type with Quick- Pitch - Maximum cutting depth: 5/8 inch (16 mm)
- Maximum cutting width: 8 inch (203 mm)
- Dust port connection: 3 inch (76mm)
GENERAL
- Width: 17-1/2 inch (419 mm)
- Height (at maximum cutting depth):
39-1/2 inch (1003 mm) - Length (at maximum cutting depth):
39-1/4 inch (997 mm)
POWER SOURCE
- Type: Honda, All-Position, 4 Stroke
- Horse Power: 5HP (3.7kw)
- RPM: 3600
- Starter: Mechanical rewind
- Fuel: Gasoline, unleaded automotive grade
