COMPRESSOR AIR 185 CFM AIRMAN DSL

Manufacturer: AIRMAN
Model: PDS185S-6EZ1
4 Hour: $225
Daily: $225

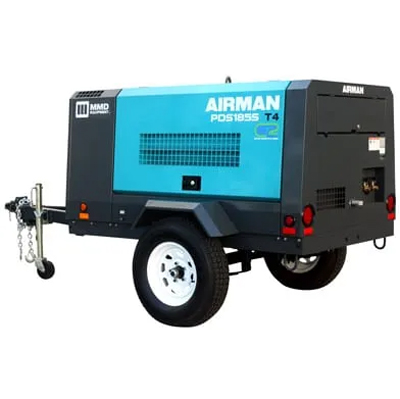

Airman 185 CFM, Yanmar Powered Diesel Driven Rotary Screw Air Compressor - Reliable, quiet, and perfectly sized for your needs, AIRMAN's PDS185 series is the highest quality at the greatest value. With an easy to maintain design and top of the line ECO-Mode fuel economy, we'll keep your job moving forward and your costs moving down.

The PDS185 Series features a key start with digital monitor, quick access air connections, direct coupled engine to air, QuieTech sound attenuation, E2 airflow technology, and an interior storage compartment.

The PDS185 Series is mounted on a heavy duty steel tow trailer and has powder-coated steel construction, stainless steel hardware, corrosion-proof air intakes and watertight door seals. Large gullwing doors and external fluid drains provide ease of maintenance and safe curbside servicing. The PDS185 Series have CARB-compliant Tier4F engines, DEF tanks to scrub hazardous nitrogen oxides from diesel emissions, and fuel-saving auto idle modes for environmentally-friendly operation.

FEATURES
  • 185 cfm Free Air Delivery
  • Best-in-Class Fuel Efficiency
* Prices are subject to change. Tax and other fees not shown in above price estimate.
  • Type: Single-Stage, Oil Cooled, Screw-Type
  • Flow at 100 psi: 185 cfm
  • Working Pressure: 100 psig
  • Maximum Working Pressure: 120 psig
  • Air Receiver Tank Capacity: 5.29 gal
  • Outlets: 3/4" x 2
  • Engine Coupling Type: Direct Coulping
  • Lubrication System Type: Forced Lubrication
  • Lubrication System Capacity: 3.96 gal
  • Engine Model: Yanmar 4TNV88C-DHKS
  • Engine Type: Water-Cooled, 4-Cycle, Direct Injection
  • Cylinders: 4
  • Displacement: 133.6 in³
  • Power: 47.6 hp
  • Low Idle: 1350 rpm
  • High Idle: 3000 rpm
  • Fuel Tank Capacity: 24 gallon
  • Cooling System Capacity: 1.93 gal
  • Oil Capacity: 1.95 gal
  • Electrical System: 12-Volt
PDF Version Airman 185 CFM Specifications
PDF Version Airman 185 CFM Operators Manual
PDF Version Airman 185 CFM Parts Manual
