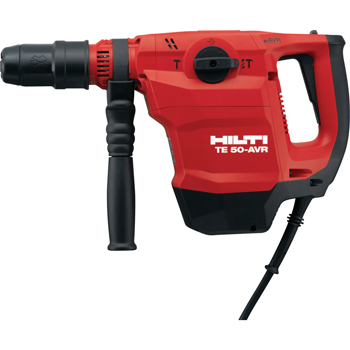

HILTI TE 50-AVR ROTARY HAMMER

$848.25

Category:
#2127969 Combihammer TE 50-AVR 120V - Our most compact SDS Max (TE-Y) rotary hammer for lightweight comfort and control while drilling or chiseling in concrete, stone, and masonry.

FEATURES
  • Weight according EPTA-Procedure 01/2003:  13.4 lb.
  • Single impact energy:  4.4 ft-lbs
  • Hammer drilling diameter range:  15/32 - 1-9/16 in
  • Exceptionally light and versatile SDS Max (TE-Y) rotary hammer
  • Low contact pressure for high user comfort
  • Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity
  • Optional DRS-Y dust removal system collects up to 95% of dust
  • Detachable supply cord for quick and easy replacement of damaged/broken cords on the jobsite

APPLICATIONS
  • Hammer drilling in concrete, masonry and natural stone (possible diameter range 12-55 mm, recommended diameter range 16-32 mm)
  • Light to medium-duty chiseling in masonry and concrete
  • Drilling penetrations mainly in masonry using percussion core bits (possible diameter range 45-150 mm, recommended diameter range up to 82 mm)
  • Weight according EPTA-Procedure 01/2003: 13.4 lb.
  • Single impact energy: 4.4 ft-lbs
  • Hammer drilling diameter range: 15/32 - 1-9/16 in
  • Optimum Hammer drilling range: 5/8 - 1-1/4 in
  • Hammer drilling RPM: 360 rpm
  • Full hammering frequency: 3510 impacts/minute
  • Functionality: Active Vibration Reduction (AVR), Chiseling, Depth gauge
  • Triaxial vibration value for hammer drilling into concrete (ah,HD): 8.8 m/s² 1
  • Dust removal system available: TE DRS-Y, TE DRS-D, TE DRS-BK
  • Triaxial vibration for chiseling into concrete: 7.1 m/s² 2
  • Dimensions (LxWxH): 17.7 x 4.5 x 10.7 mm
PDF Version Hilti TE 50-AVR Operators Manual
