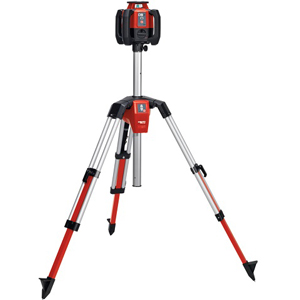

Hilti PR 30-HVS Rotating Laser
Hilti PR 30-HVS Rotating Laser
Robust outdoor rotating laser featuring 360° impact protection and fast-charging Li-ion battery, for horizontal, vertical and slope applications.

  • 360° outlast – the unique head of the tool together with four shock-absorbing handles and robust receiver holder as well as the rugged IP 66 protected housing (battery excluded) provide the most reliable performance in the toughest jobsite environments (MIL-STD-810G)
  • The lithium-ion battery, featuring CPC technology for unique power management, charges within 35 minutes
  • Teamed up with the PRA 30 remote control/laser receiver in one device, the Hilti PR 30-HVS A12 rotating laser forms the perfect, reliable system for a host of levelling, aligning and squaring tasks
  • Digital measurement indicates to the user precisely how much the measurement deviates from the target value
  • Fast, automatic laser alignment at up to 490 ft thanks to the revolutionary Auto Alignment System™ makes this a one-person task.
  • Leveling (transferring heights, pouring concrete, excavation...)
  • Aligning (transferring building lines, aligning columns, facades)
  • Grading (ramps, parking lots, pipes)
  • Squaring
  • Accuracy: ±0.02 in at 33 ft
  • Max. Operating Distance with Laser Receiver (Diameter): 1640 ft
  • Self Leveling Range at Room Temperature: ±5 °
  • IP Protection Class: IP 66 (IEC 529)
  • Laser class: <4.85mW, 620-690nm, Class 2 (IEC 60825-1:2007), class II (FDA CFR 21 art. 1040)
  • Operation Time with Li-ion Battery: 16 h
  • Operating Temperature Range: -4 - 122 °F
  • Dimensions (L x W x H): 7.9 x 7.9 x 9.7 in
  • Weight with Batteries: 5.5 lb.
  • Battery Type: Li-Ion B 12/2.6
  • Tripod Thread Diameter: 5/8 in
PDF Version Hilti PR 30-HVS Specifications
PDF Version Hilti PR 30-HVS Operating Manual
