Description
The Hamm 3307 is a 66 inch wide, single drum, vibratory roller designed for compacting roads, streets, parking lots and pipe trenches. Due to the small size and exceptional maneuverability, this roller is also well suited for compaction on large building foundations and industrial construction sites. With simple operating controls, single drum rollers are an ideal solution for any level operator.
ENGINE
- Model: TD2011
- Cylinders: 4
- Gross Power: 91 hp
- Power Measured @: 2600 rpm
- Displacement: 177 cu in
- Fuel tank capacity: 46 gal
DIMENSIONS
- Height – Top of Cab: 9 ft.
- Overall Length: 15.36 in.
- Overall Width: 6 ft.
- Operating Weight:15,543 lbs
DRUM
- Drum Width: 66 in.
- Vibration Frequency: 42 Hz
- Nominal Amplitude – High: 0.1 in.
- Nominal Amplitude: – Low: 0.1 in.
PERFORMANCE
- Centrifugal Force: 27,675 lbs
- Travel Speed: 7.7 mph
- Drive: Variable Hydrostatic all-wheel traction
- Steering: Hydrostatic

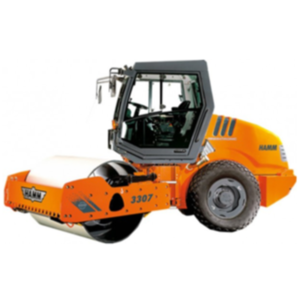

Hamm 3307 Vibratory Smooth Roller
 |
Hamm 3307 Specifications |
