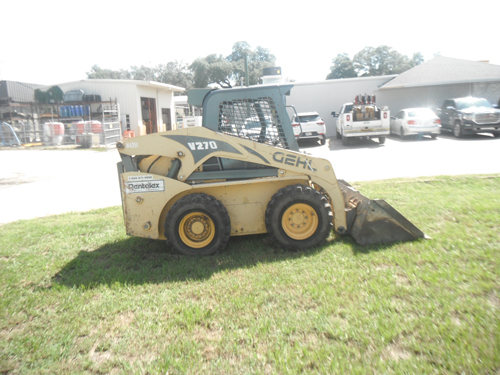

Hours: 1472.400 | Year: 2011 | S/N: 00270E00021604 | Unit#: 87714351 - The GEHL V270 is the smallest vertical lift skid loader designed to offer high visibility, intuitive controls, precise movement and an ergonomic operator station. Take advantage of all its performance to facilitate your daily handling operations. Earth-moving to feed-moving this machine is built to assist you in whatever you (or your buddy) has on their project list. DIY to LLC this machine will not let you down. Its hydra glide TM ride control system allows the lift arm to “float” when transporting loads, minimizing loss of material and increasing operator comfort.
Overall Operating Height (mm): 169.8" (4313)
Height to Hinge Pin (fully raised) (mm): 130.3" (3310)
Overall Height (to top of ROPS) (mm): 80.5" (2045)
Ground Clearance to Chassis (mm): 8.0" (203)
Overall Length (mm): 149.2" (3790)
Overall Length (w/o bucket): 115" (2921)
Wheelbase (mm): 49.8" (1265)
Dump Reach (full height) (mm): 34" (864)
Rollback at Ground: 29 degrees
Dump Angle: 41 degrees
Overall Width (mm): 69.5" (1765)
Bucket Width (mm): 70" (1778)
Clearance Circle (rear) (mm): 65.5" (1664)
Clearance Circle (front, w/o bucket) (mm): 74.6" (1895)
Clearance Circle (front, w/bucket) (mm): 93" (2362)
Seat to Ground Height (mm): 0.2" (1021)
Rollback at Full Height (mm): 94 degrees
Dump Height (mm): 99" (2515)
Departure Angle: 27 degrees
Standard Tire Size: 12.00x16.5 HD
Make: Yanmar
Model: 4TNV98T - Interim Tier IV Net
Power (kW) @ rpm: 70.7 hp (52.7) @ 2500
Displacement (L): 203 cu.in. (3.3)
Maximum Torque (Nm) @ 1650 rpm: 206 ft-lbs. (280)
Auxiliary Hydraulics - Standard (L/min): 21.75 gpm (82.3)
