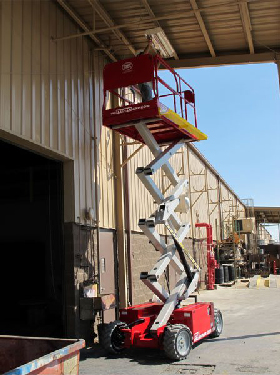

33′ ELECTRIC ROUGH TERRAIN

FEATURES

• Fully Proportional Drive & Lift Controls.
• Rough Terrain Capability Paired With Slab Size & Sensibility.
• 4-Wheel Drive, 48v DC Power.
• 59” (150 cm) Overall Width.
• No-Maintenance Scissor Bearings.
• Roll-Out Deck Extension with Incremental Lock Positions.
• Standard Integrated Sheet Material Rack Designed & Approved By MEC.
• Patented Powerlift2 Scissor System – Built Strong, Works Tough.
• Outrigger Support For Platform Stability On Heavy Duty Jobsites with One-Touch Auto Leveling.

HEIGHTS

• Working Height: 38ft (11.75m)
• Platform Height: 32ft (9.75m)
• Maximum Drive Height: 32ft (9.75m)
• Stowed Height (Top Guardrail): 96in (2.44m)
• Stowed Height (RailsFolded): 82in (2.09m)
• Stowed Height (PlatformFloor): 51in (1.30m)
• Guardrail Height: 43 3/8in (1.10m)
• Toeboard Height: 6in (15cm)
• Ground Clearance: 6in (15cm)

DIMENSIONS

• Length – Stowed (Overall): 105 in (2.67m)
• Length – Stowed (WithoutStep): 99 in (2.50 m)
• Length – w/Outriggers (option): 126 in (3.20 m)
• Width: 59 in (1.5 m)
• PlatformLength (Extended): 133½ in (3.39 m)
• PlatformLength (Retracted): 91 in (2.31 m)
• Roll-Out Deck Length: 42¼ in (1.07 m)
• Platform Width (Outside): 46 in (1.17m)
• Sheet Rack Width: 8 in (20 cm)
• Wheelbase: 82 in (2.1 m)
• TotalLiftCapacity: 750 lbs (340 kg)
• PersonnelCapacity:
  MAX 2 persons 500lbs (225kg)
• Roll-Out Deck Capacity: 250 lbs (113 kg)
• Sheet Rack Capacity: 250 lbs (113 kg)

PERFORMANCE

• Gradeability: 31%/17°
• Turning Radius (Inside): 59 in (1.5 m)
• Weight (Approximately): 6950 lbs (3150 kg)
• Brakes: Dual rear wheelmulti-disc
• PowerSource: 48 v DC, 250 Ah battery pack
• Drive Axle: 4-Wheel Drive Hydraulic
• Drive Speed (Stowed): 3.1mph 5.0km/h
• Drive Speed (Raised): 0.4mph .65km/h
• Controls: Proportional drive and liftcontrols
• Tires (RTTread):
  23in. D x 10.5 in.W (58cm D x 26.7 cm W)
