20′ SCISSOR LIFT ELEC SKYJACK 3220

Manufacturer: SKYJACK
Model: SJ3220
4 Hour: $144
Daily: $144
Product Enquiry

Description

The versatile SJ 3220 scissor lift with a lift capacity of an impressive 900 lbs and working height of 26 feet or (9.3) meters. The narrow conventional series DC Electrical scissor lift provides a huge reinforced steel platform and makes the Skyjack 3220 scissor lift perfect for any ‘on slab’ related applications. This particular Skyjack model is drivable at full height, and carries a multiple speed rear wheel hydraulic drive. Other standard features of the SJ 3220 scissor lift include dual holding brakes and a 3 foot roll out extension deck.

The Skyjack 3220 scissor lift also carries an analog control system, and is powered by a 24 volt DC power source transporting easily on durable solid rubber, non marking tires.
Other standard features of the Skyjack 3220 scissor lift include an electric tilt alarm, all motion audible alarm system, operator horn and is safeguarded with a hinge railing system equipped with forklift pockets and sturdy tie down-lift lugs. The Skyjack SJ 3200 scissor lifts are the right choice when you need abundant working space and maximum lifting capacity without sacrificing maneuverability.  The Skyjack SJ 3220 scissor lift is capable of maneuvering even in the smallest spaces with an outside turning radius of 108 inches or 2.7 meters. Ideal tasks for the Skyjack SJ3220 Scissor Lift include office fitting out, retail (including fitting out and general up grading of store such as hanging point of sale), mechanical engineering, joinery, facilities management, electrical contracting, cleaning, plumbing, warehousing and decorating.

SKYJACK SJ 3220 SPECIFICATIONS:

  • Work Height: 26’ (7.92 m)
  • Raised Platform Height: 20’ (6.10 m)
  • Lowered Platform Height: 38” (0.97 m)
  • Overall Width: 32” (0.81 m)
  • Overall Length:5” (2.32 m)
  • Stowed Height (Rails Up):5” (1.97 m)
  • Stowed Height (Rails Down): OPT 63.5” (1.61 m)
  • Platform Width (Inside Dimension): 28” (0.71 m)
  • Platform Length (Inside Dimension): 84” (2.13 m)
  • Extension Deck (Roll Out): 3’ (0.91 m)
  • Ground Clearance (Stowed): 5” (8.89 cm)
  • Ground Clearance (raised): 75” (1.90 cm)
  • Wheelbase: 69” (1.75 m)
  • Weight: 3,510 lbs (1,592 kg)
  • Gradeability: 30%
  • Turning Radius (Inside): 50” (1.27 m)
  • Turning Radius (Outside): 108” (2.74 m)
  • Lift Time (With Rated Load): 33 sec
  • Lower Time (With Rated Load): 29 sec
  • Drive Speed (Stowed): 2 mph (3.2 km/h)
  • Drive Speed (Raised):7 mph (1.1 km/h)
  • Maximum Drive Height: Full Height
  • Capacity (Overall): 900 lbs (408 kg)
  • Distributed Capacity (Main Platform):
    600 lbs (159 kg)
  • Distributed Capacity (Ext. Deck):
    300 lbs (136 kg)
  • Local Floor Load (With Rated Load):
    130 psi (897 kPa)
  • Overall Floor Load (With Rated Load):
    245 psf (12 kPa)
  • Maximum # of Persons: 2
  • Wind Rating: 28 mph (12.5 m/s)
  • Tire Type: Solid, N/M
  • Tire Size: 16 x 5 x 12

STANDARD FEATURES

  • Drivable at full height
  • Variable speed, rear 2-wheel hydraulic drive
  • Dual holding brakes
  • Proportional controls for drive & lift functions
  • 3’ (0.91 m) Roll out extension deck
  • 24V DC power source
  • Low voltage battery protection
  • Up to 30% Gradeability
  • Solid rubber, non-marking tires
  • Pothole protection system
  • 110V AC outlet on platform with GFI
  • 28 mph wind rating (12.5 m/s)
  • Tilt alarm with drive & lift cut-out
  • All motion audible alarm
  • Lanyard attachment points
  • Operator horn
  • Forklift pockets and tie down/lift lugs
  • Relay based control system
  • Color coded and numbered wiring system
  • Telematics ready

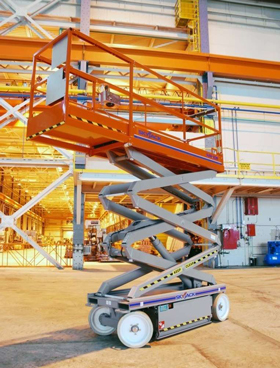

Skyjack SJ3220 Scissor Lift

Skyjack SJ3220 Scissor Lift

PDF Version SKYJACK SJIII3220 Specifications
* Prices are subject to change. Tax and other fees not shown in above price estimate.
