FORKLIFT 6000LB 36′ JCB 506C

Manufacturer: JCB
Model: 506C
4 Hour: $380
Daily: $380
Product Enquiry

Description

JCB transmission incorporating torque converter, 4 speed syncroshuttle gearbox in one resiliently mounted unit. JCB 506C / 506C HL / 508C powershift transmission optional. Travel speed 15.5mph (25kph). Front and rear drive axles: JCB epicyclic hub reduction drive/steer axles with Max-Trac torque proportioning differentials. Permanent 4 wheel drive. Fitted to carriage tilt, telescopic and boom lift rams.

ENGINE

  • Gross Power: 5 hp 61.5 Kw
  • Power Measured @: 2200 rpm
  • Max Torque: 227 lb ft 307.8 Nm
  • Torque Measured @: 1400 rpm
  • Displacement: 269 cu in 4.4 L
  • Number of Cylinders: 4
  • Aspiration: Naturally aspirated

OPERATIONAL

  • Operating Weight: 21040 lb 9543.6 kg
  • Fuel Capacity: 35 gal 132.5 L
  • Hydraulic System Fluid Capacity: 32 gal 121.1 L
  • Operating Voltage: 12 V
  • Alternator Supplied Amperage: 65 amps
  • Tire Size:13.00×24

HYDRAULIC

  • Pump Type: Two stage gear pump
    with suction strainer and filter
  • Pump Flow Capacity:1 gal/min 110 L/min
  • Relief Valve Pressure: 3500 psi 24131.6 kPa

LIFT

  • Max Lift Capacity: 6000 lb 2721.6 kg
  • Max Lift Height:1 ft in 11000 mm
  • Max Load at Max Height: 6000 lb 2721.6 kg
  • Max Forward Reach: 23 ft in 7000 mm
  • Max Load at Max Reach: 2000 lb 907.2 kg

DIMENSIONS

  • Length to Fork Face: 5 ft in 5340 mm
  • Width Over Tires:7 ft in 2340 mm
  • Overall Height: 8 ft in 2670 mm
  • Wheelbase:1 ft in 2780 mm
  • Ground Clearance: 3 ft in 410 mm
  • Turning Radius Outside Tires: 5 ft in 4120 mm

TRANSMISSION

  • Type: 4 speed synch shuttle gearbox
  • Number of Forward Gears: 4
  • Number of Reverse Gears: 4
  • Max Speed – forward:5 mph 24.9 km/h
  • Max Speed – reverse: 5 mph 24.9 km/h

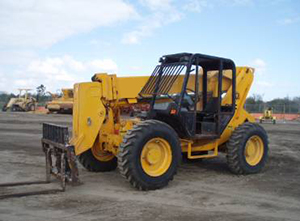

JCB 506C Telehandler forklift

JCB 506C Forklift

PDF Version JCB 506C Specifications
* Prices are subject to change. Tax and other fees not shown in above price estimate.
