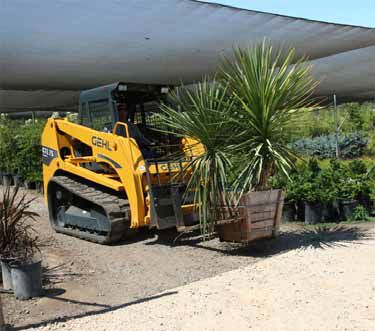

TRACK LOADER, GEHL CTL/75

Manufacturer: GEHL
Model: CTL/75
4 Hour: $275
Daily: $317
Product Enquiry

Description

Gehl Compact Track Loaders are bursting with power and ready take on any challenge that approaches. These versatile machines excel in almost any environment.

  • New high-powered, Tier III EPA-certified emissions compliant engines meet stringent emissions standards while delivering exceptional performance
  • High-flow option model CTL75
  • New standard foot throttle in all models increases the ability for operators to multi-task
  • New control handle design with added switch controls places the operationof the machine at the operator’s finger-tips
  • Ground speeds up to 7.5 mph in high speed – Power speed/transport speed
  • Float control function easily activated by a push-button does not require continuous button activation
  • New lifting points added for overhead hoisting
  • Optional factory or field installed Hydraulic

ENGINE

  • Make/Model: Yanmar 4TNV98T
  • Aspiration: Turbocharged
  • Displacement (L)/cylinder: 202.5 cu.in. (3.3)/4
  • Power(kW) @ rpm: 83 (62) @ 2500
  • Maximum Torque(Nm) @ rpm: 190 (258) @ 1800

DIMENSIONS AND WEIGHTS

  • Operating Weight – lbs. (kg): 9700 (4400)
  • Lift Height to bucket pin – in. (mm): 122.9 (3120)
  • Dump Height – in. (mm): 94.8 (2405)
  • Reach @ Maximum lift – in. (mm): 34.4 (874)
  • Dump angle – degrees: 38.5
  • Bucket rollback @ground level – degrees: 31
  • Length – without bucket – in. (mm): 117.3 (2980)
  • Length – with bucket – in. (mm): 140 (3543)
  • Ground clearance – in. (mm):147.2 (3740)
  • Angle of departure – degrees: 30
  • Height to top of ROPS – in. (mm): 85 (2167)
  • Width – without bucket – in. (mm): 70 (1770)
  • Overall width – with bucket – in. (mm): 74 (1880)
  • Rear Clearance Radius – in. (mm): 66 (1666)
  • Front Clearance Radius w/ bucket – in. (mm): 90 (2294)

PERFORMANCE

  • Tipping Capacity – ISO 14397 – lbs. (kg): 5952 (2700)
  • Rated Operating Load – ISO 14397 – lbs. (kg)
    • @ 50% of tipping capacity 2976 (1350)
    • @ 35% of tipping capacity 2083 (945)
  • Breakout Forces – lbf. (kN)
    • Bucket: 7401 (32.9)
    • Lift arm: 7425 (33)

ELECTRICAL

  • Battery / CCA: 12-volt / 600
  • Alternator – amp: 50

UNDERCARRIAGE

  • Traction Pump / Traction Drive: Piston / Planetary
  • Traction braking: Hydraulic – SAHR
  • Drawbar pull – lbf. (kN): 11,067 (50)
  • Roller type/Track rollers – each side: Steel / 4
  • Track width – in. (mm): 18 (457)
  • Track contact length – in. (mm): 59 (1496)
  • Ground pressure – psi (kg/cm2): 4.1 (0.28)
  • Travel Speeds – mph (km/h)
    • Low: 0 – 4.7 (0 – 7.6)
    • High: 0 – 7.2 (0 – 11.6)

HYDRAULIC SYSTEM

  • Operating pressure – psi (bar): 2988 (206)
  • Auxiliary Hydraulic flow – std. – gpm (L/min): 19.8 (74.9)
  • High-Flow Option – gpm (L/min). 36.3(137.5)

CAPACITIES

  • Fuel – gal. (L): 23.8 (90.1)
  • Hydraulic reservoir – gal. (L): 12.8 (48.5)
  • Engine oil – qts. (L): 10.8 (10.2)
  • Engine coolant – qts. (L): 17.4 (16.5)
* Prices are subject to change. Tax and other fees not shown in above price estimate.
