Manufacturer: TAKEUCHI
Model: TL10V2CR
4 Hour: $504
Daily: $504

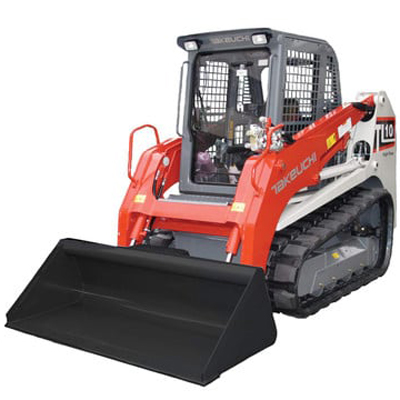

The TL10V2 features a vertical lift loader arrangement and is Final Tier 4 emissions compliant. The cab is completely redesigned and enlarged and features a low-effort overhead door design for improved entry and egress. A quiet track design with wide block tread reduces vibration, noise levels, and improves ride quality.

  • Powerful and Efficient – The turbocharged engine delivers an excellent blend of power and performance and it features a DOC+DPF exhaust after treatment system.
  • Vertical Lift Loader – Designed to deliver unmatched performance and class leading tipping load and rated operating capacity.
  • Automatic Power Control – Maintains engine power for optimal performance, and it may be engaged or disengaged by the operator.
  • Rear Bumper with Tie Downs – Delivers greater protection to the rear of the machine and simplifies anchoring the machine for transport.
  • Heavy Duty Cross Member – Protects bucket cylinders from damage and it has been lowered for improved attachment visibility.
  • High Capacity Cooling Module – Enables machine to run cooler and more efficiently for improved component life and attachment efficiency.
  • Pilot Joystick Controls – Respond immediately to operator input and are low effort for excellent performance and comfort.
  • Improved Foot Throttle Position – Enables the operator’s foot to be a more natural position for reduced fatigue and greater comfort.
  • Deluxe High Back Suspension Seat – Delivers outstanding comfort and features a wide range of adjustments including multiple height positions for improved attachment visibility.
  • Hydraulic Oil Sight Gauge – Is easily seen by the operator as they enter the machine.
  • High Capacity Cooling Module – Swings out for ease of inspection and cleaning.
  • Enhanced Access to Maintenance Items – Many key maintenance items are accessible from the rear of the machine: engine oil fill, engine oil dipstick, coolant reserve tank, fuel water separator, air cleaner, and wiper washer fluid.
* Prices are subject to change. Tax and other fees not shown in above price estimate.
  • Bucket Capacity: 1YD3
  • Operating Weight: 10270 LBS
  • Horsepower: 74.3HP
  • Emission Rating: Tier 4 Final
  • Engine Make/Model: Kubota / V3307-CR-TE4B
  • Net Torque: 195LBF/FT
  • Rated Speed: 1500rpm
  • Displacement: 203in3
  • Cylinders: 4
  • Fuel Tank Capacity: 21.5 gal
  • Transmission Type: Hydrostatic
  • Controls Actuation: Pilot joystick
  • Max Forward Speed: 7mph
  • After Treatment System: Diesel Particulate Filter
  • Undercarriage Type: Hi Mount Drive Motor
  • Drive Method: Sprocket - Double Reduction
  • Linkage Geometry: Vertical
  • Straight Tipping Load: 7,205 lbs
  • Rated Operating Capacity: 2,522 lbs
  • Bucket Breakout Force: 6,520 lbs
  • Lift Arm Breakout Force: 5,400 lbs
  • Traction Force: 9,730 lbs
  • Hydraulic Power: 65.8 hp
  • Pump Flow: 32.8 gal/min
  • Transport Height: 7ft 5.4in
  • Transport Length: 12ft 1in
  • Width (no bucket):5ft 8.5in
  • Max Lift Height to Bucket Pin: 9ft 11in
  • Dump Height Fully Raised: 10ft 4.8in
  • Max Dump Angle: 40°
  • Dump Reach Fully Raised: 3ft 1.4in
  • Max Bucket Rollback @ Ground: 30°
  • Ground Clearance: 12.6in
  • Track Rollers: 4
  • Track Shoe Width: 15.7in
PDF Version Takeuchi TL10V2 Specifications
