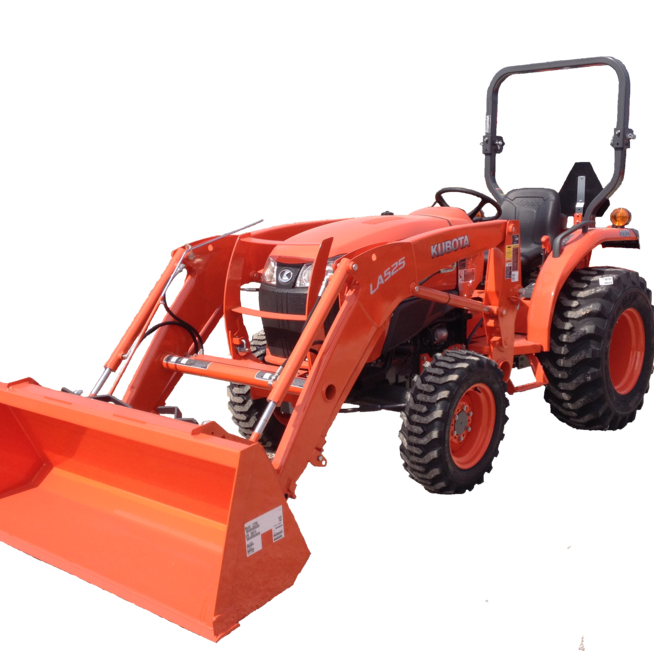

L3901HST 39 HP TRACTOR WITH LOADER BUCKET

Manufacturer: KUBOTA
Model: L3901HST
4 Hour: $325
Daily: $325
The L 3901 HST is a great 39 horsepower tractor. Coupled with the LA 504 Kubota Loader, this new Kubota tractor has what it takes to take care of your personal food plot or any jobs that might come up around the house. The Standard L-Series brings more comfort to hard work, with a spacious and ergonomic operator layout, suspension seat, and more.

FEATURES
  • Spacious Operator’s Deck - To provide maximum comfort, the Standard L-Series features a spacious operator platform. Its flat* design also makes getting on and off the tractors easier.
  • New Seat - The adjustable seat suspension offers a high level of comfort. The seat is contoured and ergonomically designed to help reduce operator fatigue when working long days. A drain hole has been added to allow water to escape so it does not accumulate on the seat.
  • New Dash Panel - The dash panel features large gauges and a digital LCD panel that provide vital information including engine error codes and a parking brake indicator.
  • Sleek Design - The Standard L-Series’ sleek slanted hood provides a great field of vision. This comes in handy for front-loader work. Multiple headlamps are useful in dark and inclement conditions. Additionally, the one-piece hood can be fully opened for easier access to the engine and other maintenance items.
  • Cup/Mug Holder - This convenient holder securely fits a cup or a mug to keep operators hydrated while on the job.
  • Tool Box - A large toolbox is located right behind the operator's seat for easy access. Models with the backhoe will have the toolbox above the left fender, next to the operator's seat.
  • Roll-Over Protective Structure (ROPS) - For maximum protection, all models come with a foldable ROPS and a retractable seat belt as standard equipment.
* Prices are subject to change. Tax and other fees not shown in above price estimate.
  • Ground Clearance: 13.4 in (34 cm)
  • Height: 4.9 ft (1 m)
  • Height - Top of ROPS/FOPS: 7.7 ft (2 m)
  • Overall Length: 107.9 in (274 cm)
  • Overall Width: 4.6 ft (1 m)
  • Wheelbase: 5.3 ft (2 m)
  • Bore: 3.5 in (9 cm)
  • Displacement: 111.4 cu in (0 m)
  • Engine Make: KUBOTA
  • Engine Model: D1803-CR-E4
  • Engine Type: Direct injection, Vertical, Water-Cooled 4 cycle diesel
  • Gross Power: 37.5 hp (28 kw)
  • Max Torque: 85.5 lbs/ft
  • Net Power: 36.3 hp (27 kw)
  • Number of Cylinders: 3
  • PTO Power: 30.6 hp (23 kw)
  • Rated Speed: 2700 rpm
  • Stroke: 4.1 in (10 cm)
  • Implement Pump Flow PS: 3.8 gal/min (14 l/min)
  • Pump Flow Capacity: 6.3 gal/min (24 l/min)
  • System pressure: 2349 psi
  • 3 Point Hitch Lift Capacity @ 24 inches: 1433.1 lbs (650 kg)
  • 3 Point Hitch Type Category: 1
  • Alternator Supplied Amperage: 40 A
  • Cooling System Fluid Capacity: 1.6 gal (6 l)
  • Fuel Capacity: 11.1 gal (42 l)
  • Lift Configuration: Position control
  • Operating Voltage: 12 V V
  • Operating Weight: 2777.9 lbs (1,260 kg)
  • Tire Size: Front - 2wd / 4wd 7.2 - 16
  • Turning Radius: 8.3 ft (3 m)
  • Rear Tires Size: 11.2 - 24
  • Brakes: Mechanical, wet disc type
  • Clutch, wet/dry Dry type: single stage
  • Max Speed: 14.2 mph (23 kph)
  • Number of Forward: Gears 3
  • Number of Reverse: Gears 3
  • Steering Integral type: power steering
  • Transmission Type: Hydrostatic transmission
PDF Version Kubota L3901HST Specifications

Brand

KUBOTA
