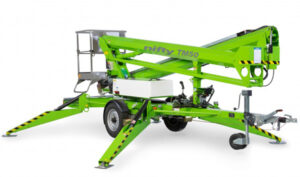

With one of the largest working envelopes in its class the TM50 trailer mount delivers maximum reach with stability and control. Octagonal boom sections provide the TM50 trailer mount strength without compromising on weight and the telescopic upper boom improves accuracy when positioning the platform. Fully proportional hydraulic outriggers make setting up and levelling the TM50 trailer mount quick and easy even on gradients. The TM50 trailer mount's outstanding reach makes it ideal for a wide range of applications. The TM50 trailer mount is also available with a traction drive option that offers a simple, cost effective and safe method for on-site positioning.

FEATURES

Telescopic Upper Boom: Greater accuracy when positioning platform
Hydraulic Outriggers: For quick & easy setup
Fully Proportional Hydraulic Controls: Simple, reliable & easy to maintain.
Bi-Energy Available: Optimizing utilization
Traction Drive Option: For improved maneuverability on site

Machine Length: 20ft 4in
Working Width: 14ft 5in
Min Weight: 4,200lbs
Machine Width: 5ft 5in
Safe Working Load: 500lbs
Cage Size: 3ft 7in x 2ft 2in
Outrigger Type: Hydraulic
Platform height: 49ft 6in
Working outreach: 28ft 6in
Working height: 56ft
Machine height: 7ft
Cage Rotation: Available
Power Options: Mains Only | Battery Only | Gas or Diesel Only | Bi-Energy (Engine & Battery)
