Description

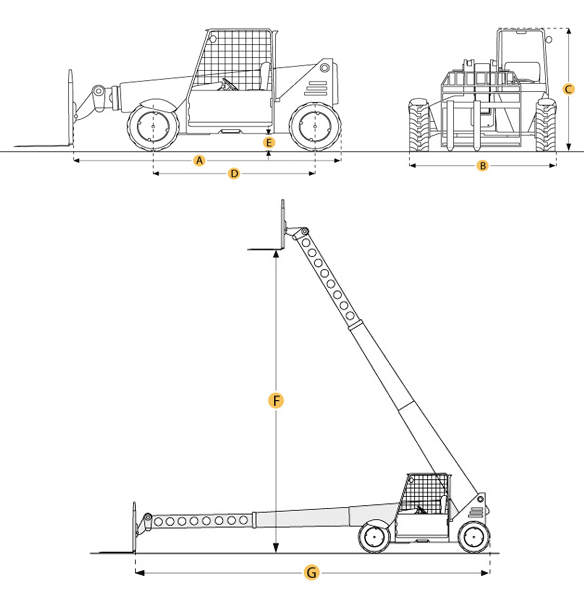

DIMENSIONS
- Length To Fork Face: 8 Ft In (4201 mm)
- Width Over Tires: 6 Ft In (1815 mm)
- Overall Height:5 Ft In (2280 mm)
- Wheelbase: 3 Ft In (2230 mm)
- Ground Clearance: 8 Ft In (300 mm)
- Max Lift Height: 3 Ft In (4970 mm)
- Max Forward Reach : 8 Ft In (3000 mm)
ENGINE
- Make: Perkins
- Model: 1103C 33
- Gross Power: 7 Hp (43 kw)
- Power Measured: 2200 rpm
- Max Torque: 7 Lb Ft (222 mm)
- Displacement: 4 Cu In (3.3 L)
OPERATIONAL
- Operating Weight: 2 Lb (5020 Kg)
- Fuel Capacity: 8 Gal (94 L)
- Drawbar Pull : 7 Lb (3469.4 Kg)
- Tire Size: 0-18 T86 12 Pr
SPECIFICATIONS
- Type: Hydrostatic
- Number Of Forward Gears: 1
- Number Of Reverse Gears: 1
- Max Speed – Forward: 7 Mph (22 km/h)
- Max Speed – Reverse:7 Mph (22 km/h)
- Pump Type: Gear Type
- Pump Flow Capacity: 23 Gal/Min (87 L/Min)
- Relief Valve Pressure: 9 Psi (23000 kpa)
- Max Lift Capacity: 6 Lb (2300 Kg)
- Max Lift Height: 3 Ft In (4970 mm)
- Max Load At Max Height:6 Lb (2300 Kg)
- Max Forward Reach : 8 Ft In (3000 mm)
- Max Load At Max Reach:3 Lb (1150 Kg)
- Turning Radius Outside Tires:
1 Ft In (3090 mm)

Manitou 5KLBS Reach Forklift
![]() |
Manitou MT523T Specifications |
