Skyjack 6832RTE

Rough Terrain Scissor Lift Model SJ6832 RTE

Rough Terrain Scissor Lift Model SJ6832 RTE

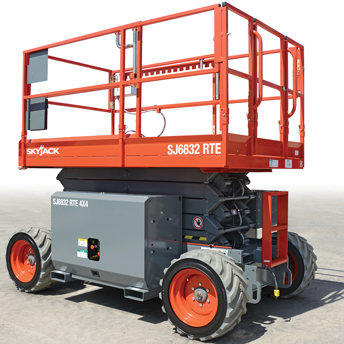

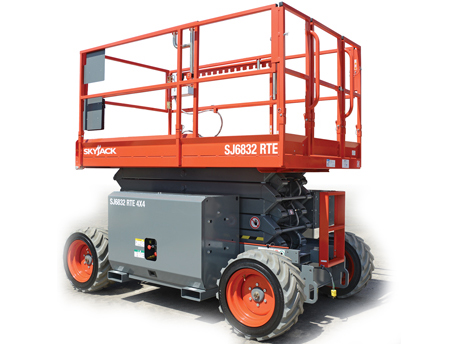

Skyjack’s SJ6832 RTE Rough Terrain Scissor Lift

Skyjack’s SJ6832 RTE electrically powered rough terrain scissor marries the class leading SJ6832 RT with a powerful and efficient electric power-pack. The 6832 RTE retains the benefits of being capable of elevating 1000 lbs to 32 ft in a package that is narrower, lighter and with an overall length and turning radius of up to 20% less than the class norm.

The elimination of engine maintenance requirements and fuel bills, along with the benefits of relay driven controls, the Skyjack colored & numbered wiring system and ease of service ensures that the SJ6832 RTE boasts the best possible contribution to your project’s bottom line without sacrificing performance.

By coupling the proven crossover symmetrical all-wheel drive system with the remarkable torque of an efficient AC electric motor, gradeability is enhanced to an impressive 45%, providing industry leading rough terrain performance.

Learn more about the Skyjack model SJ6832 RTE standard features below. For more information about its rental prices go to our Skyjack Scissor Lift SJ6832 RTE product page or call us at (813)971-9990.

STANDARD FEATURES

  • Crossover symmetrical 4WD
  • Drivable at full height with roll out deck fully extended
  • 5’ roll out extension deck
  • 16hp AC electric motor with motor controller
  • 48V 250Ah battery pack
  • Low voltage battery protection
  • Multiple wet disc spring applied, hydraulic release (SAHR) brakes
  • 110V AC outlet on platform with GFI
  • 45% Gradeability
  • Standard foam filled grip lug non-marking tires
  • Tilt alarm with drive & lift cut-out
  • Lanyard attachment points
  • All motion audible alarm
  • Operator horn
  • Hinged railing system
  • Forklift pockets and tie down/lift lugs
  • Full height spring-hinged gate at rear of unit
  • Relay based control system
  • Color coded and numbered wiring
  • Telematics ready

OVERALL SPECIFICATIONS

  • Work Height38’ (11.58 m)
  • Raised Platform Height 32’ (9.75 m)
  • Lowered Platform Height 54” (1.37 m)
  • Overall Width 69.5” (1.76 m)
  • Overall Length 107” (2.72 m)
  • Stowed Height (Rails Up)99” (2.51 m)
  • Stowed Height (Rails Down) 69” (1.75 m)
  • Platform Width (Inside Dimension) 56” (1.42 m)
  • Platform Length (Inside Dimension) 96” (2.44 m)
  • Extension Deck 5’ (1.52 m)
  • Ground Clearance 8” (0.20 m)
  • Wheel base 80.5” (2.04 m)
  • Weight 7,885 lbs (3,577 kg)
  • Gradeability 45%
  • Turning Radius (Inside) 60” (1.52 m)
  • Turning Radius (Outside) 156” (3.96 m)
  • Lift Time (With Rated Load) 39 sec
  • Lower Time (With Rated Load) 36 sec
  • Drive Speed (Stowed) 3.5 mph (5.6 km/h)
  • Drive Speed (Raised) 0.4 mph (0.6 km/h)
  • Maximum Drive Height Full Height
  • Capacity (Overall) 1,000 lbs (454 kg)
  • Distributed Capacity (Main Platform) 700 lbs (318 kg)
  • Distributed Capacity (Extension Deck) 300 lbs (136 kg)
  • Local Floor Load (With Rated Load) 184 psi (1269 kPa)
  • Overall Floor Load (With Rated Load) 281 psf (13 kPa)
  • Maximum # of Persons: 4
  • Tire Type Foam Filled Non-Marking
  • Tire Size 26 x 12
