SCISSOR LIFT 32′ NARROW GS3232

Manufacturer: GENIE
Model: GS-3232
4 Hour: $265
Daily: $265
Product Enquiry

Description

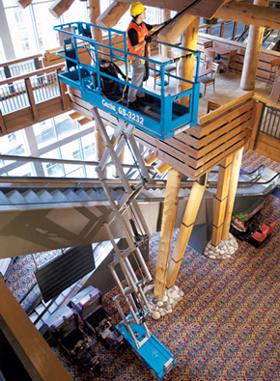

Genie GS-3232 Scissor Lift

Genie GS-3232 Scissor Lift

Ideal for maneuvering in tight spaces, Genie® slab scissor lifts are excellent for indoor and outdoor construction, maintenance and installation applications with firm, level surfaces. The numbers in the model make it fairly similar to the GS-2632 because its total width is also of 32″, but the main difference is in the vertical reach. The Genie GS-3232 can go all the way up to a stunning 32 feet high (actually, its total reach is 38 feet if we count the lift as a whole).

The Genie GS-3232 can easily achieve the same tasks as the Genie GS-1930 and the Genie GS-2632, and of course, it can do so much more. This model is ideal for mid-range reach in really narrow spaces and is one of only a few other lifts capable of working in retail shops, larger construction sites, industrial maintenance applications, parking garages, and most importantly, terrains which are not completely leveled.

FEATURES

  • Quiet, zero-emission electric operation ideal for sound-sensitive environments
  • Front-wheel drive and zero inside turning radius for maneuverability in tight spaces
  • Automatic leveling hydraulic outrigger system levels machine on slopes up to 5˚
  • Link stack is centered at full elevation and platform extension for machine rigidity
  • Forward-angled Hall-effect joystick for comfortable, accurate control
  • LED window on platform controls with battery level indicator, on-board diagnostics and more
  • Electronic control system allows for variable-speed DC motor for greater battery efficiency
  • Compact dimensions and folding guardrails — easily passes through standard single or double doors
  • 3 ft (.91 m) extension deck provides maximum platform workspace for workers and tools
  • Heavy-duty steel swing-out service trays for easy service access

SPECIFICATIONS

  • Working Height*: 38 ft (11.75 m)
  • Width: 2 ft 8 in (0.81 m)
  • Outside Turning Radius: 7 ft (2.13 m)
  • Lift Capacity: 500 lbs (227 kg)
  • Gradeability**: 25%
  • Wheelbase: 6ft 1 in
  • Length – Stowed: 8ft
  • Length – Extended: 10ft 11in
  • Toeboard Height: 6in (0.15 m)
  • Platform Width (outside): 2ft 8in

POWER

  • Power Source: 24 V DC
    (four 6V 225Ah batteries)
  • Hydraulic System Capacity: 4.5 gal
