19′ SCISSOR LIFT ELEC

Manufacturer: GENIE
Model: GS-1930
4 Hour: $144
Daily: $144
Product Enquiry

Description

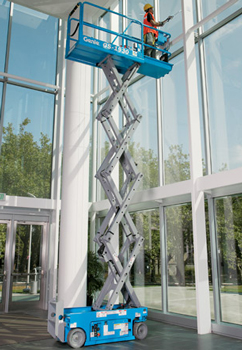

Genie GS-1930 Scissor Lift

Genie GS-1930 Scissor Lift

Ideal for maneuvering in tight spaces, Genie® slab scissor lifts are excellent for indoor and outdoor construction, maintenance and installation applications with firm, level surfaces.

PRODUCTIVITY

  • 64 x 29 in (1.63 x .74 m) steel platform
  • Fixed rail with chain entry gate
  • Folding rails with half-height swing gate (CE)
  • 36 in (.91 m) extension deck
  • Dual front wheel drive
  • SmartLink™ – proportional lift and drive
  • Universal 20 amp smart charger
  • Rear recessed charger receptacle
  • 25% gradeability
  • Platform control with battery charge indicator and diagnostic display.
  • On-board diagnostic system
  • AC power to platform
  • Lanyard attachment points
  • Manual platform lowering valve
  • Emergency stop at both platform and ground controls
  • Rear wheel multiple disc brakes
  • Front wheel hydraulic dynamic braking
  • Brake release
  • Swing-out component trays
  • Solid non-marking tires
  • Pothole guards
  • Tilt level sensor with audible alarm
  • Descent alarm
  • Electronic horn
  • Hour meter

GS-1930E SPECIFICATIONS

  • Working height maximum*: 21 ft 6.57 m
  • Platform height maximum: 15 ft 4.57 m
  • Platform height stowed: 3 ft 2.2 in .97 m
  • Platform length – outside: 5 ft 4 in 1.63 m
  • Platform length – extended: 8 ft 4 in 2.54 m
  • Slide-out platform extension deck: 3 ft 0.91 m
  • Platform width – outside: 2 ft 5 in 0.74 m
  • Guardrail height fixed rails: 3 ft 3 in 0.99 m
  • Guardrail height fold down:
    (CE) 3ft 7in 1.10 m
  • Toeboard height: 6 in 0.15 m
  • Height-stowed fixed rails: 6 ft 5 in 1.96 m
  • Height-stowed folding guardrails:
    (CE) 6ft 8in 2.03 m
  • Height-Stowed Rails Folded: 5 ft 8 in 1.73 m
  • Length-Stowed: 6 ft 1.83 m
  • Length-Stowed Extended: 9 ft 2.74 m
  • Width: 2 ft 6 in 0.76 m
  • Wheelbase: 4 ft 4 in 1.32 m
  • Ground Clearance-Center: 2.4 in 0.06 m
  • Ground Clearance – with pothole guards
    deployed: 0.75 in 0.02 m
  • Gradeability**: 25%
  • Lift Capacity: Up to 500lbs (227kg)
  • 24 V DC (four 6 V 225 Ah batteries)
