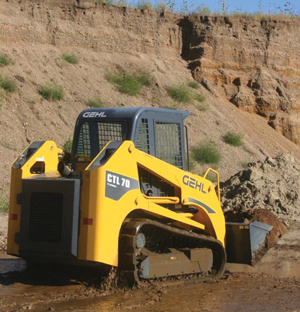

GEHL CTL70

TRACK LOADER, GEHL CTL/70

Manufacturer: GEHL
Model: CTL70
4 Hour: $288
Daily: $288
Product Enquiry

Product Description

Eliminate the headaches of challenging terrain with a machine that will get you out of almost any predicament. Compact Track Loaders from Gehl are turf-friendly yet highly agile, outperforming most skid loaders in adverse conditions. And with no tires to go flat, these machines work tirelessly, as long as you do.

CAPACITIES

  • Fuel Tank: 23.8 gal
  • Hydraulic Reservoir: 13.7 gal
  • Engine Oil: 10.0 qts
  • Engine Coolant: 16.0 qts

DIMENSIONS

  • Operating Weight – approximate: 9590 lbs. (4350)
  • Maximum Lift Height to Bucket Pin: 123” (3124)
  • Dump Height: 95” (2408)
  • Reach at Maximum Lift: 34.4” (874)
  • Dump Angle: 38.5°
  • Bucket Rollback at Ground Level: 31°
  • Length – without bucket: 116” (2949)
  • Length – with bucket: 146” (3708)
  • Ground Clearance: 12.8” (325)
  • Angle of Departure: 29.2°
  • Height – to top of ROPS: 85” (2167)
  • Width – without bucket: 70” (1770)
  • Width – with bucket: 74” (1880)
  • Rear Clearance Radius: 66” (1666)
  • Front Clearance Radius w/bucket: 90” (2294)

ENGINE

  • Make/Model: Isuzu / 4JG1T
  • Aspiration: Turbo-charged
  • Displacement (L) / cylinders:
    187 cu.in. (3.1) / 4
  • Horsepower (kW) @ rpm: 81 hp (60) @2400
  • Maximum Torque (Nm) @ rpm:
    190 ft.-lbs. (258) @ 1800

ELECTRICAL

  • Battery / CCA: 12-volt / 660
  • Alternator: 50 amp

HYDRAULIC SYSTEM

  • Operating Pressure (bar): 2988 psi (206)
  • Auxiliary Hydraulic Flow – standard (L/min):
    19.8 gpm (74.9)
