Skyjack SJIII3219 Scissor Lift

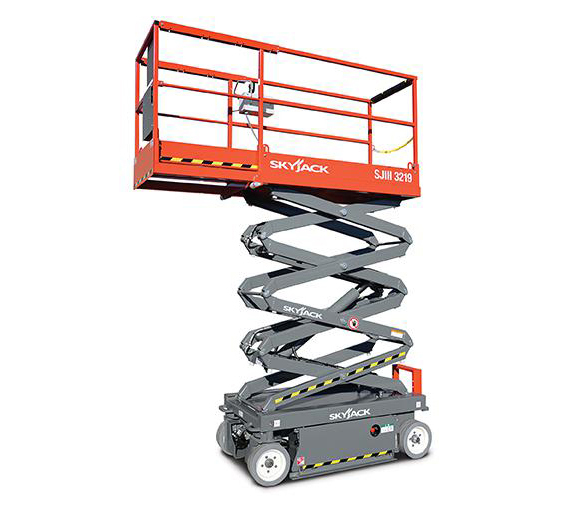

DC Electric Scissor Lift Model SJIII 3219

DC Electric Scissor Lift Model SJIII 3219

DC Electric Scissor Lift Model SJIII 3219

Skyjack’s Compact DC Electric Scissor Lifts offer Skyjack’s easy to service, low maintenance design in a compact and versatile package. Equipped with variable speed front wheel hydraulic drive, and 90° steering, both models are capable of maneuvering in the smallest spaces. Featuring a 3’ roll out extension deck, these models offer work heights up to 25’ and 25% gradeability. The SJIII 3219 platform boasts an industry leading capacity; and 550lbs.

The SJIII 3219 features durable steel swing-out component trays, providing unrestricted access for easy maintenance and service. Skyjack’s DC Electric Scissor lifts utilize Skyjack’s standard color coded and numbered wiring system with analog based controls.

Learn more about the Skyjack model SJIII3219 standard features below. For more information about its rental prices go to our Skyjack Scissor Lift SJIII3219 product page or call us at (813)971-9990.

STANDARD FEATURES

  • Drivable at full height
  • Variable speed, front two wheel hydraulic drive
  • 90° steering (zero inside turning radius)
  • Dual holding brakes
  • Proportional controls for drive & lift functions
  • 3’ (0.91 m) Roll out extension deck
  • 24V DC power source
  • Low voltage battery protection
  • 30% Gradeability
  • Solid rubber, non-marking tires
  • Pothole protection system
  • 110V AC outlet on platform with GFI
  • 28 mph wind rating (12.5 m/s)
  • Tilt alarm with drive & lift cut-out
  • All motion audible alarm
  • Lanyard attachment points
  • Operator horn
  • Forklift pockets and tie down/lift lugs
  • Relay based control system
  • Color coded and numbered wiring system
  • Telematics ready

OVERALL SPECIFICATIONS

  • Work Height 25’ (7.62 m)
  • Raised Platform Height 19’ (5.79 m)
  • Lowered Platform Height 39” (0.99 m)
  • Overall Width 32” (0.81 m)
  • Overall Length 70” (1.78 m)
  • Stowed Height (Rails Up) 78.5” (1.99 m)
  • Stowed Height (Rails Down) OPT 64.5” (1.64 m)
  • Platform Width (Inside Dimension) 26” (0.66 m)
  • Platform Length (Inside Dimension) 64” (1.63 m)
  • Extension Deck (Roll Out) 3’ (0.91 m)
  • Ground Clearance (Stowed) 2.375” (6.03 cm)
  • Ground Clearance (raised) 0.7” (1.78 cm)
  • Wheelbase 55” (1.40 m)
  • Weight 2,580 lbs (1,170 kg)
  • Gradeability 30%
  • Turning Radius (Inside): 0
  • Turning Radius (Outside) 66” (1.68 m)
  • Lift Time (With Rated Load) 25 sec
  • Lower Time (With Rated Load) 29 sec
  • Drive Speed (Stowed) 2 mph (3.2 km/h)
  • Drive Speed (Raised) 0.7 mph (1.1 km/h)
  • Maximum Drive Height Full Height
  • Capacity (Overall) 550 lbs (249 kg)
  • Distributed Capacity (Main Platform) 300 lbs (136 kg)
  • Distributed Capacity (Extension Deck) 250 lbs (113 kg)
  • Local Floor Load (With Rated Load) 110 psi (759 kPa)
  • Overall Floor Load (With Rated Load) 201 psf (10 kPa)
  • Maximum # of Persons: 2
  • Wind Rating 28 mph (12.5 m/s)
  • Tire Type: Solid, N/M
  • Tire Size: 12 x 4 x 8
